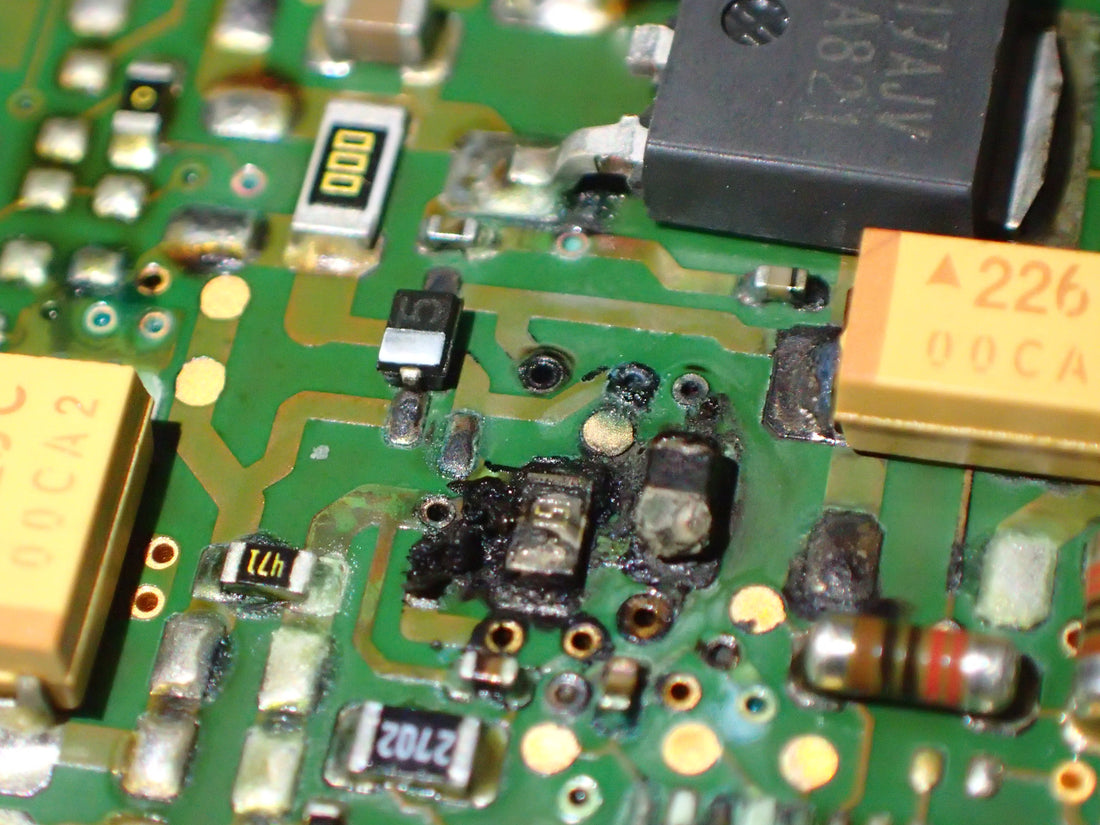

Cap Damage – When a Capacitor Starts Eating the PCB
We call it “cap damage”, short for capacitor damage, and it’s something we regularly see in ageing electronic control modules.
An electrolytic capacitor contains an electrolyte as part of its internal construction. Over many years of operation, heat cycling, age, electrical stress, excessive voltage, component degradation, or even manufacturing defects can cause the capacitor to deteriorate and eventually leak.
And that's when the real damage can begin.
Once electrolyte escapes from the capacitor and reaches the PCB, it can migrate across and underneath components. Over time, contamination and corrosion can attack protective coatings, exposed conductors, component terminations and eventually the copper trackwork itself.
What originally started as a failing capacitor can therefore become a much larger PCB repair.
Sometimes we're lucky and find one damaged track.
Other times we're reconstructing tens of tracks, vias and component connections that have been eaten away. In severe cases, the contamination has travelled underneath ICs or processors, meaning those devices need to be removed simply to expose, clean and repair the damage underneath them.
This is also what makes cap damage so unpredictable.
The module might still operate perfectly today while corrosion is already progressing underneath the components. A track may still have electrical continuity but have very little copper remaining. Eventually, vibration, temperature cycling or continued corrosion is enough for that connection to disappear completely.
Then there's another problem.
If the affected trackwork carries sensitive reference voltages, sensor signals or major power rails, corrosion and conductive contamination can create electrical paths between circuits that were never supposed to be connected.
We've seen the aftermath where voltages have reached parts of a circuit where they simply should never have been.
At that point, replacing the leaking capacitors and repairing the visible trackwork may not be enough. Secondary damage can occur to semiconductors, processors, analogue circuitry and other components elsewhere on the board and in some cases that damage can be irreversible.
Capacitor degradation isn't anything new. It's always been a consideration with ageing electronics.
A perfect automotive example is the Toyota 1KZ-TE ECU.
These ECUs are now approaching three decades old, yet we still receive completely original units that have never previously been opened. Some are only now beginning to show leaking capacitors and corrosion of the surrounding PCB trackwork.
That's why catching cap damage early can make such an enormous difference.
Replacing a deteriorating capacitor is one thing.
Reconstructing the PCB after it's been slowly eating itself for years is another.
The interesting part isn't simply finding the bad capacitor.
It's knowing where to look, how far the damage has travelled, what circuitry has been affected, and how to correctly reconstruct and test what remains.
That's the specialist part of repairing ageing electronics.
