The $9 Component That Can Write Off a $9,000 Module

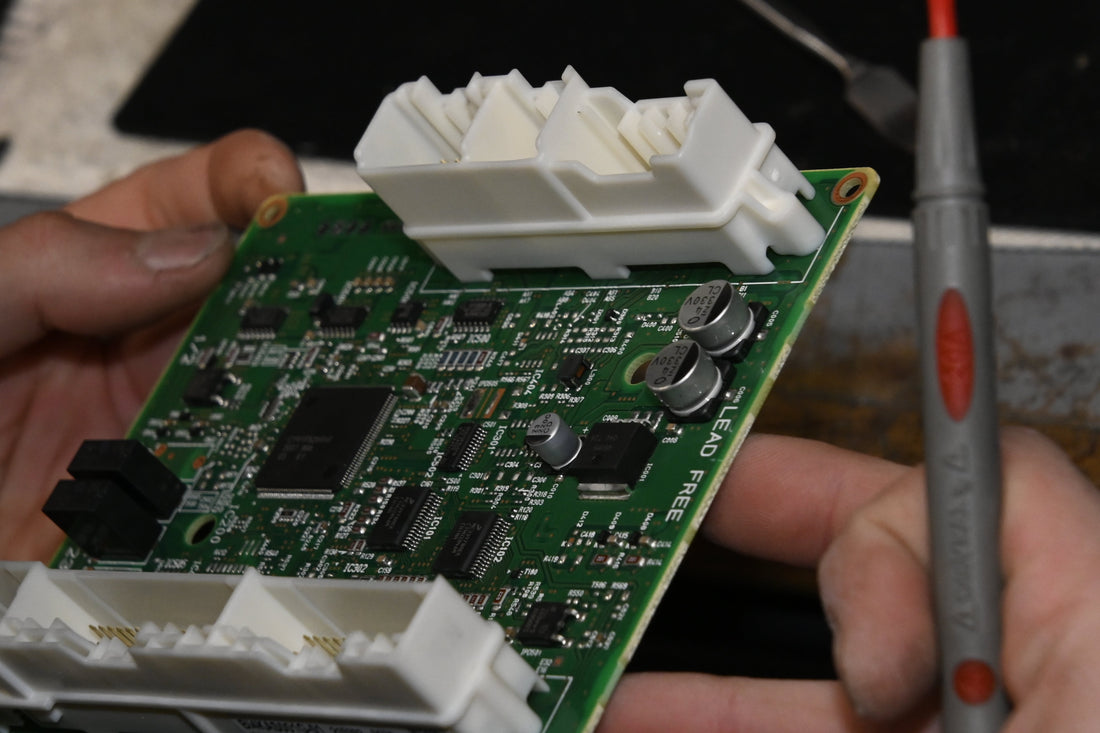

It still amazes me that a $9 electronic component can effectively write off a $9,000 control module.

We see it all the time.

A vehicle arrives at a workshop with an ABS, transmission, engine ECU, instrument cluster or body control module fault. The diagnostics are carried out, the module is condemned, and the next step according to the manufacturer is often simple: replace the complete unit.

Sometimes that's absolutely the correct answer. But sometimes, buried deep inside that expensive module, the actual failure is a capacitor, voltage regulator, MOSFET, relay, sensor or even a single damaged connection worth only a few dollars.

So why doesn't somebody just replace the $9 component?

Because finding it is the expensive part.

You're Not Paying for the Component

This is something that can be difficult to explain about electronic repairs.

The replacement component might cost $9, $50 or $300, but before we can replace it, we need to determine exactly what has failed and, more importantly, why it failed.

That can involve stripping open a module that was never designed to be repaired, tracing circuits without a schematic, testing components under load, analysing CAN communication, examining BGA devices, using X-ray equipment and sometimes building an entire test jig simply to reproduce the conditions the module would experience in the vehicle.

Replacing the component can sometimes be the easiest part of the entire job.

Finding the Cause, Not Just the Damage

There is another important question: did that component simply fail, or did something else kill it?

If a power supply circuit has been damaged, for example, fitting another component without understanding the cause could result in exactly the same failure again.

Water ingress, excessive current, voltage spikes, poor grounds, actuator failures and previous repair attempts can all create secondary damage.

This is why proper electronics diagnosis is so important.

At Get Electronic we have a saying: We don't guess; we test.

Sometimes that testing tells us a module can be repaired. Other times it tells us that it shouldn't be.

Knowing the difference is just as important.

Repair Is Becoming More Important

Modern vehicles contain an incredible number of electronic control units, and many are no longer simple plug-and-play replacements.

A replacement module may require programming, immobiliser matching, VIN information, coding, component protection or configuration before the vehicle will accept it. Some modules are becoming obsolete altogether.

That means the automotive industry needs to start thinking differently about electronic failures.

Before writing off a $9,000 ECU, ABS module, transmission controller or electronic steering system, it may be worth asking one more question:

Is the whole module actually dead — or is there a $9 component inside it that is?

The component might be cheap.

Finding it, understanding why it failed, repairing it correctly and proving that the module is reliable again — that's where the real work begins.
