FRM3 - Footwell Module BMW/ Mini - Repair service

Login to view price

Price Exclusive of GST


Our assessment fee is $150 + GST.
If you choose to proceed with the repair, this fee is applied towards the total repair cost. It is only charged separately if you decide not to proceed after the assessment.

Our full terms of trade can be found here.

Has repair work been attempted by your customer? Link here !

Heavy Diesel or Industrial Repair you need? Link here for a solution!

Plug & Play Service.

 We Will Code the Module with your Vehicle's VIN Number. All you will have to do is plug the module Back in.

FRM3 module (Footwell Module) is compatible with:

 BMW E81, E82, E84, E87, E89, E90, E91, E92, E93, E70, E71, E72 series and Mini R55, R56, R57, R58, R59, R60, R61 series



Symptoms of a failed Footwell Module:

·        Indicator lights do not work

·        Light switches do not work

·        Parking lights are constantly on

·        Windows will not go up or down

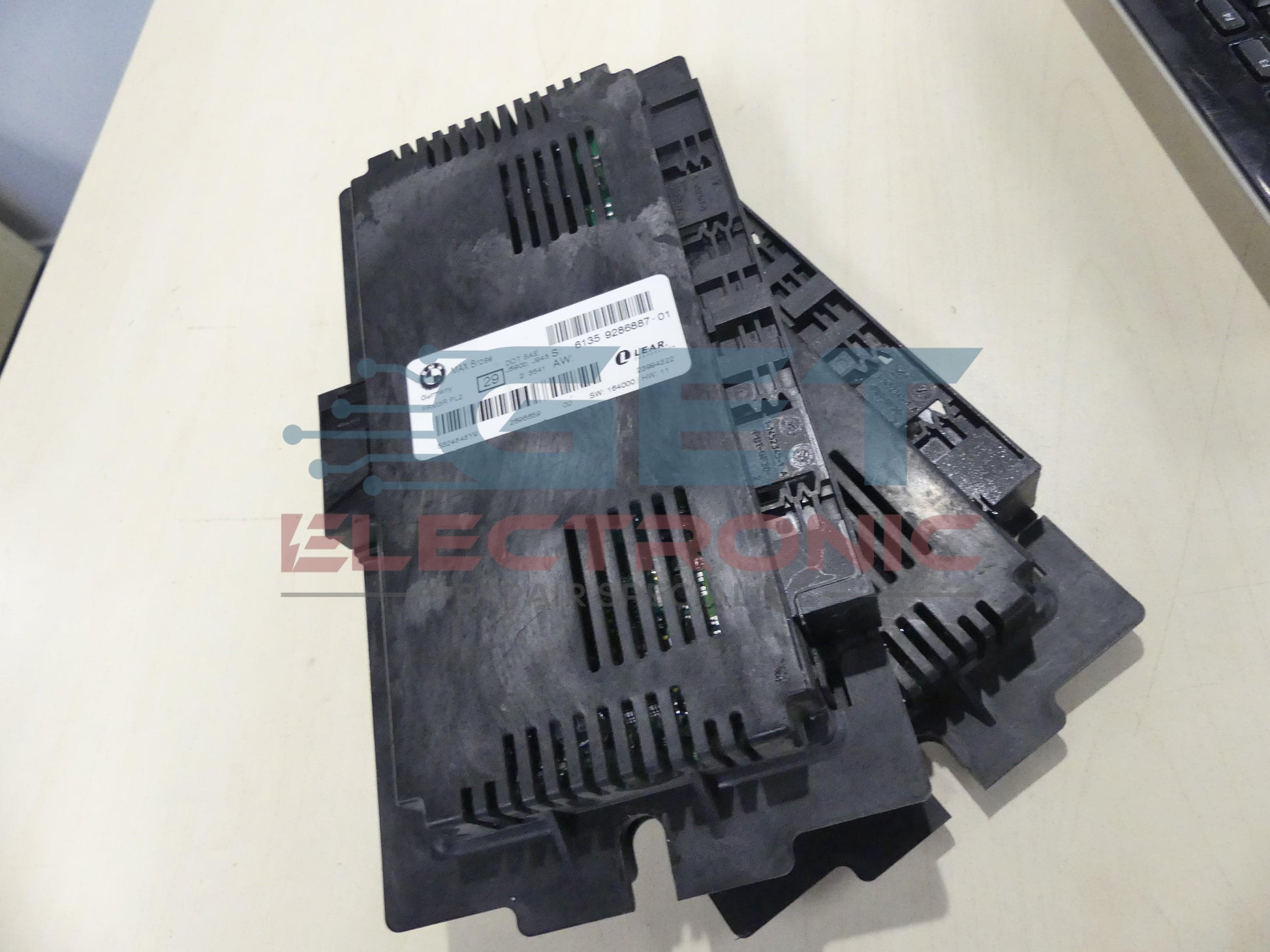

FRM can fail due to Jumpstarting the car or because of coding/programming, or just by even reading error codes. FRM3 has three connectors and is located on the left side of the pedals, behind the plastic cover.

FRM, Footwell Module Controls the Following Functions:

  •         Headlight
  •         Tail lights
  •         Fog lights
  •         Front courtesy lighting
  •         Rear courtesy lighting
  •         Number-plate light
  •         Power windows
  •         Exterior mirrors
  •         2 stepper motor controllers (AHL Module adaptive headlight or RMSC/LMSC) stepper motors





Module numbers:



FRM3 LOW R56

3455817 – 3455162 – 3456413 – 3456847 – 3457400 – 3457387 – 3457525 – 3457484 – 3456587 – 3456951 – 3457012 – 3455895 – 3455615 – 3456249 – 3457571 – 3455575 – 3456410 -3457497 – 3457595 – 3457426 – 3457478 – 3457561 – 3457519 -3457584 – 3456034 – 3456074 – 3455706 – 3456394  - 3457029 – 3456986 – 3457156 - 3457591

FRM3 HIGH R56

3455576 – 3457586 – 3455818 – 3457031 – 3457486 – 3457521 -3456073 -3457499 – 3457573 – 3455707 -3456248 – 3457402 – 3457014 – 3457527 – 3457480 – 3457563 – 3455163 – 3456409 – 3456414 – 3456848 – 3457389 -  3456395 – 3456051 – 3456588 -3457158 – 3457428 – 3457592 – 3457596 – 6827072 – 3455896 – 3455616 – 3456987 - 3456952;

FRM3 AHL R56

3455705 – 3456586 – 3457575 – 3457588 – 3456415 – 3456988 – 3457160 - 3457488 – 3457404 - 3457016 - 3457482 – 3456408 – 3456247 – 3457033 – 3457391 – 3457430 – 3456849 – 3457597 – 6827073 – 3457501 -  3457565 – 3456072 – 3456393 – 3456953 – 3454178 – 3457529 – 3457523 –

FRM3 LOW SZT
3457013 - 3457421 – 3457479 – 3457562 – 9813863 – 9813877 – 3457526 – 3457485 - 3457572 – 3457520 – 3457030 – 3457585 – 3457157 – 3457498 – 3457388 – 3457427 - 3457401

FRM3 HIGH SZT

3457015 - 3457032 – 3457403 – 3457429 – 3457500 – 3457587 – 9813878 – 6827070 – 9813864 – 3457423 – 3457564 – 3457528 – 3457487 – 3457159 - 3457390 – 3457481 – 3457574 - 3457522

FRM3 AHL SZT R56

3457017 - 3457483 – 3457589 – 3457034 – 3457392 – 3457405 – 3457425 – 3457502 – 3457530 – 3457489 – 3457431 – 3457566 – 9813865 – 9813879 – 6827071 – 3457524 – 3457161 – 3457576



This is caused by a flat battery, Jump Start, or a low voltage condition

we are unable to provide a warranty on this repair due to the root cause itself is a flat battery, therefor we Highly recommend you to change the battery if it was a low voltage state for a short amount of time the car has been sitting for.

We can Bench test for failure before and after the repair.
