LAND CRUISER/Mitsubishi Pajero/Lexus ABS Rebuild service

Login to view price

Price Exclusive of GST


Our assessment fee is $150 + GST.
If you choose to proceed with the repair, this fee is applied towards the total repair cost. It is only charged separately if you decide not to proceed after the assessment.

Our full terms of trade can be found here.

Has repair work been attempted by your customer? Link here !

Heavy Diesel or Industrial Repair you need? Link here for a solution!

Call to enquire about cost to repair. There is variations depending on the specific failure.

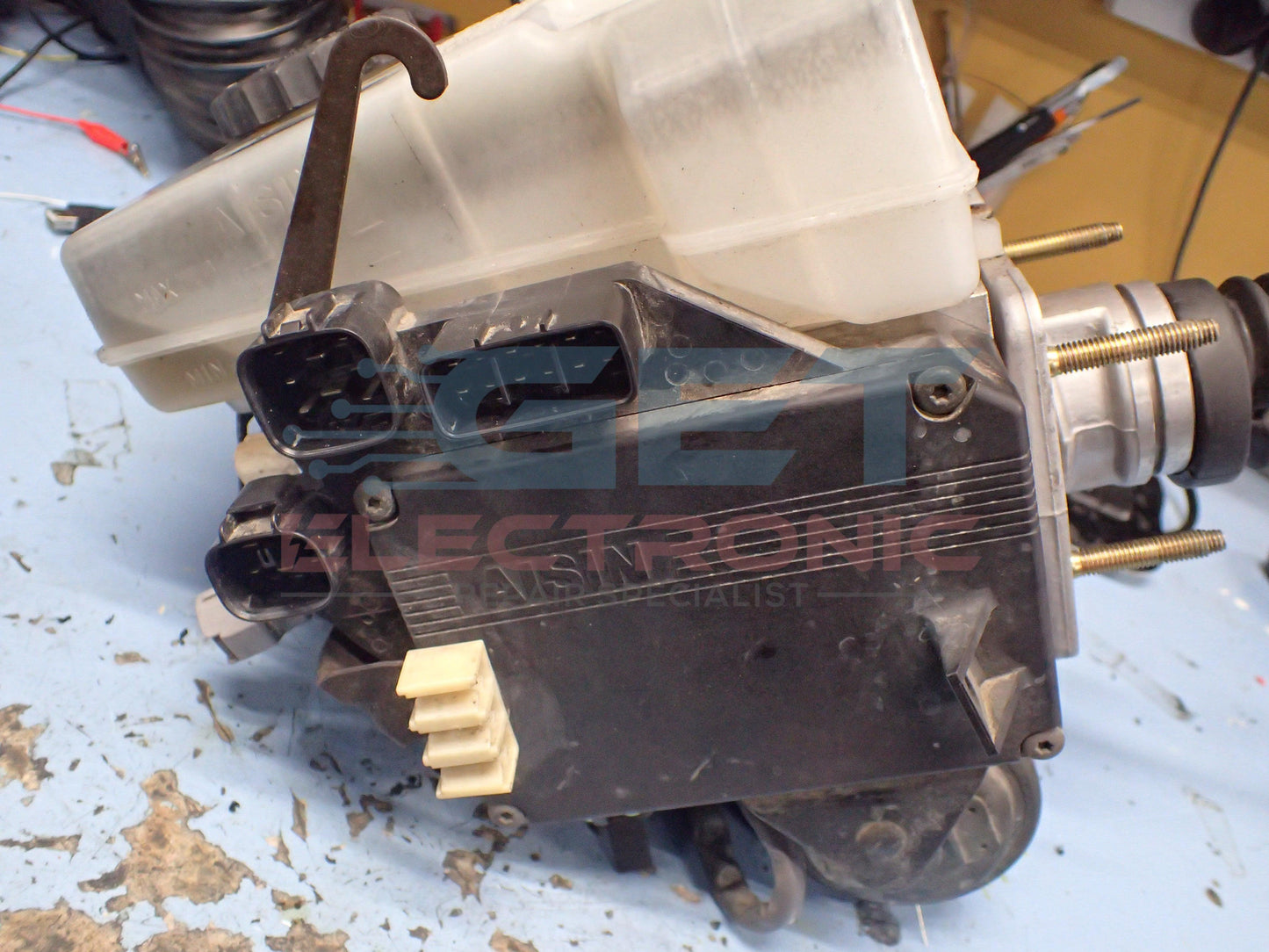

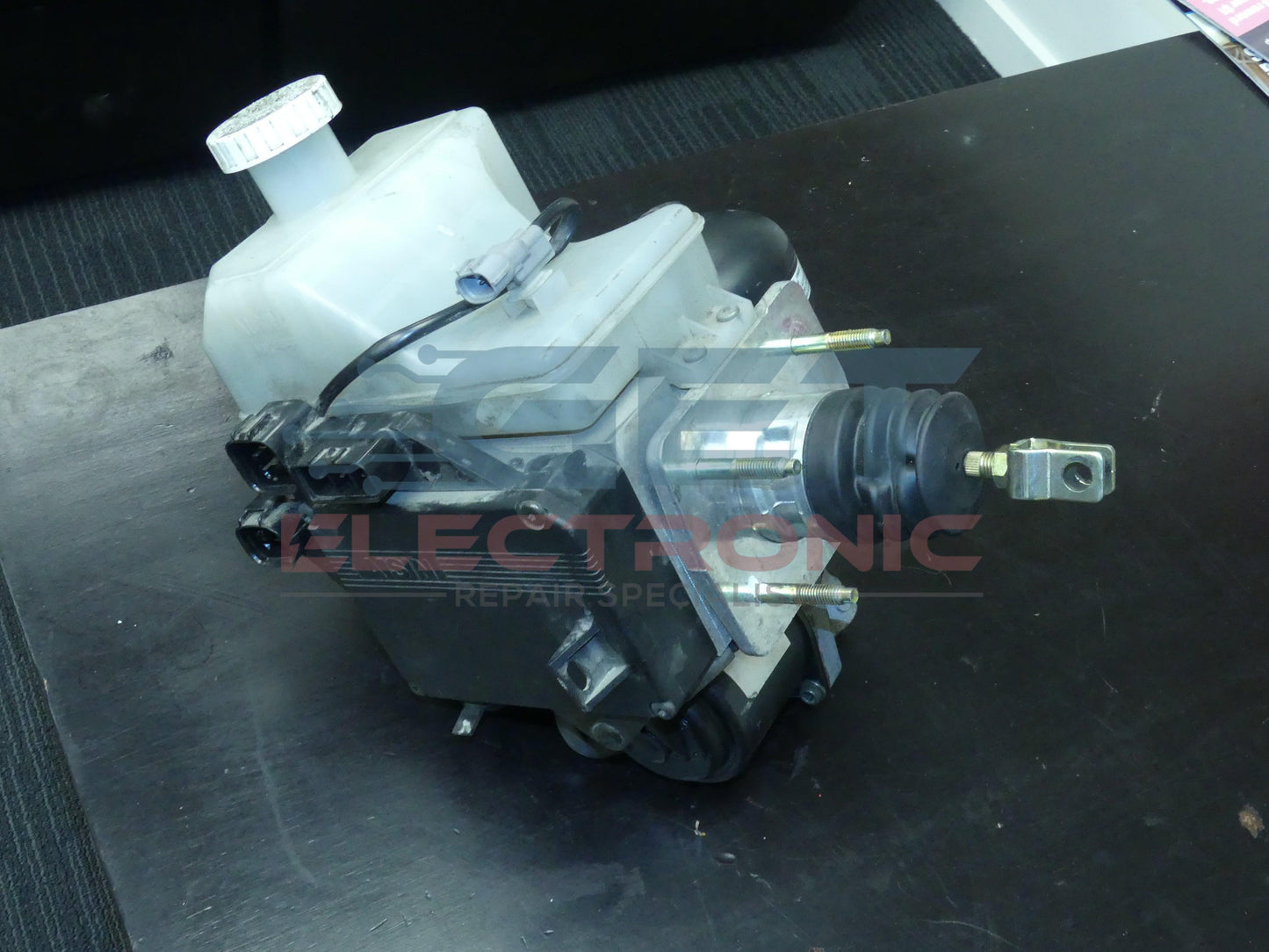

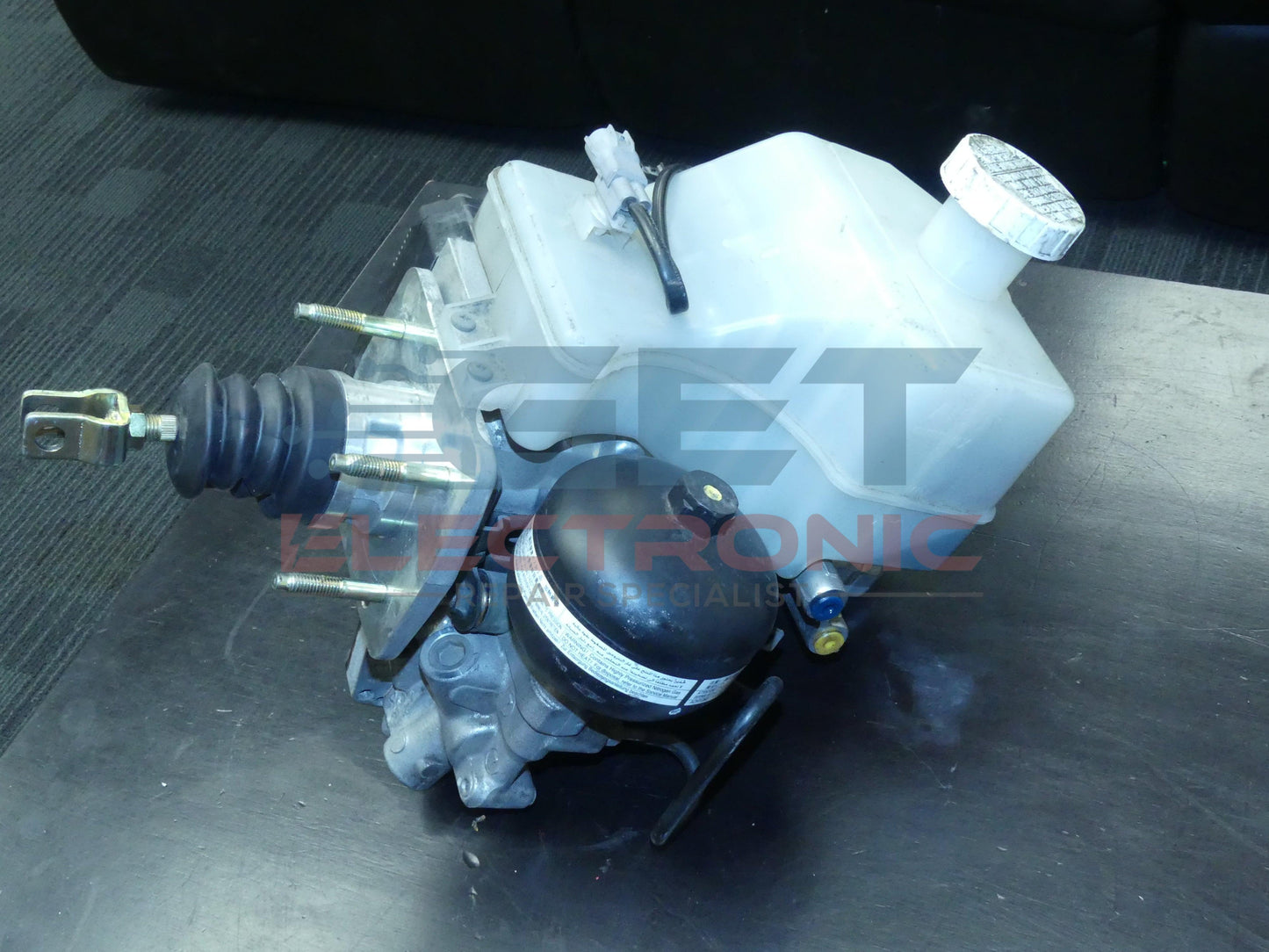

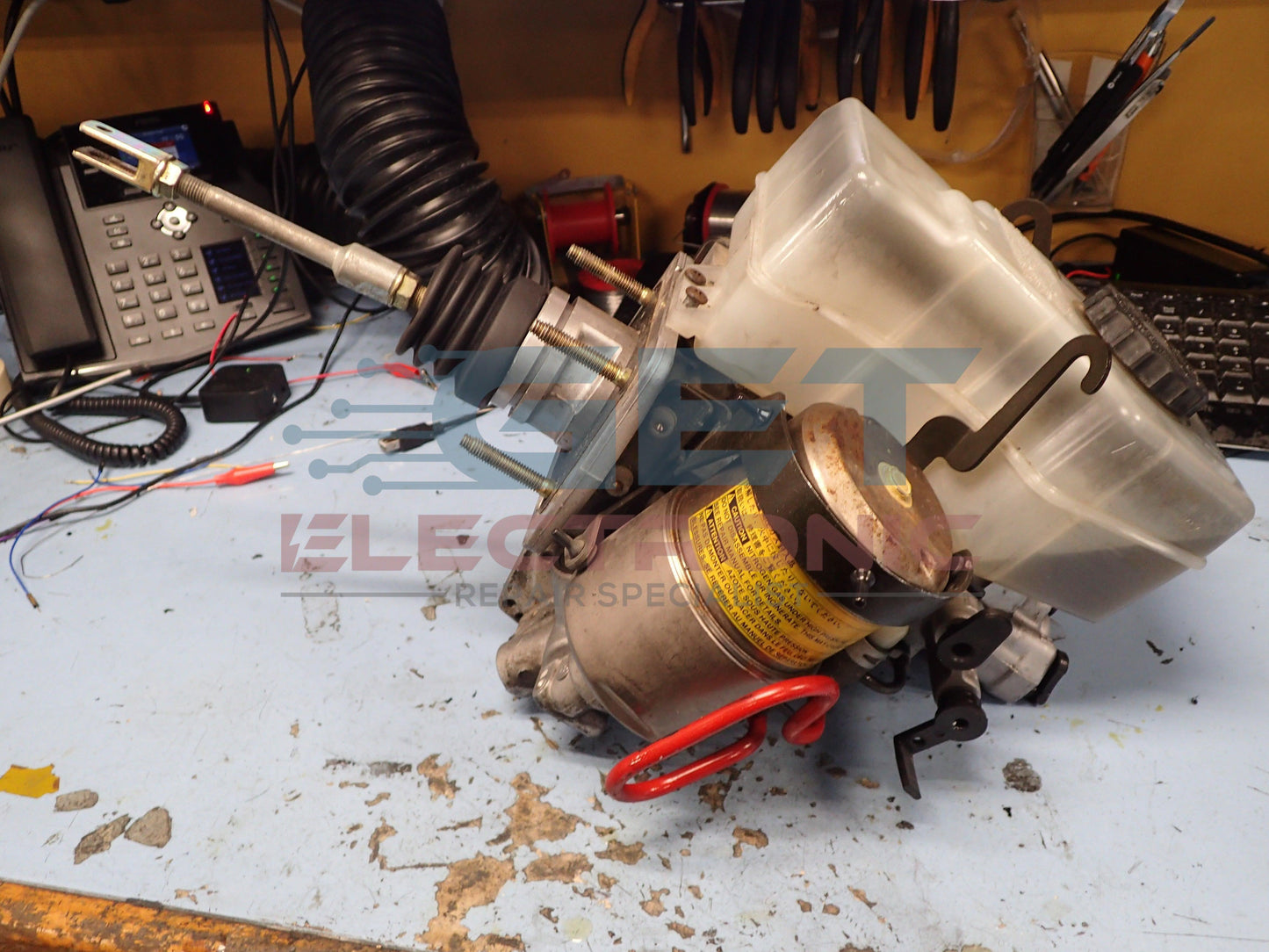

This is a repair service to Strip the whole unit down and replaces the defective / Worn out parts such as the motor assembly and also the accumulator

  • Toyota Landcruiser 100 series
  • Toyota Landcruiser Prado 120 / 150 series
  • Lexus LX 100 series
  • Lexus GS / SC series
  • Mitsubishi Pajero NM-NW series

These Aisin and Advics units do not use the traditional vacuum assisted brake booster instead they incorporate a hydraulic brake booster with accumulator to store hydraulic pressure when needed. When these units fail the brake pedal feels hard and the driver no longer has assisted brakes.  This can become a very dangerous situation.

Common faults include:

  • The abs warning light & buzzer activates
  • The brake pedal goes hard
  • Pump motor failure
  • Hydraulic brake booster pump motor open malfunction, fault code C1251
  • Hydraulic brake booster pump on time abnormal long, fault code C1252
  • Accumulator low pressure malfunction, fault code C1256
  • Accumulator pressure system malfunction, fault code 57 (Mitsubishi)



Please call us to enquire about price. The repair process varies widely depending on exactly what has failed. In most cases for this unit we need to test and confirm failures before giving a firm price for repair.

We do recommend getting the accumulator replaced if the pump fails, as the accumulator is likely the cause for this original failure.



89541-60161

89541-60160


47050-35010
