Toyota RAV4 ECU Repair Service (2001–2005)
Price Exclusive of GST
Toyota RAV4 ECU Repair Service (2001–2005)
Fix Harsh Shifting & Transmission Issues – ECM / TCM Combined Module

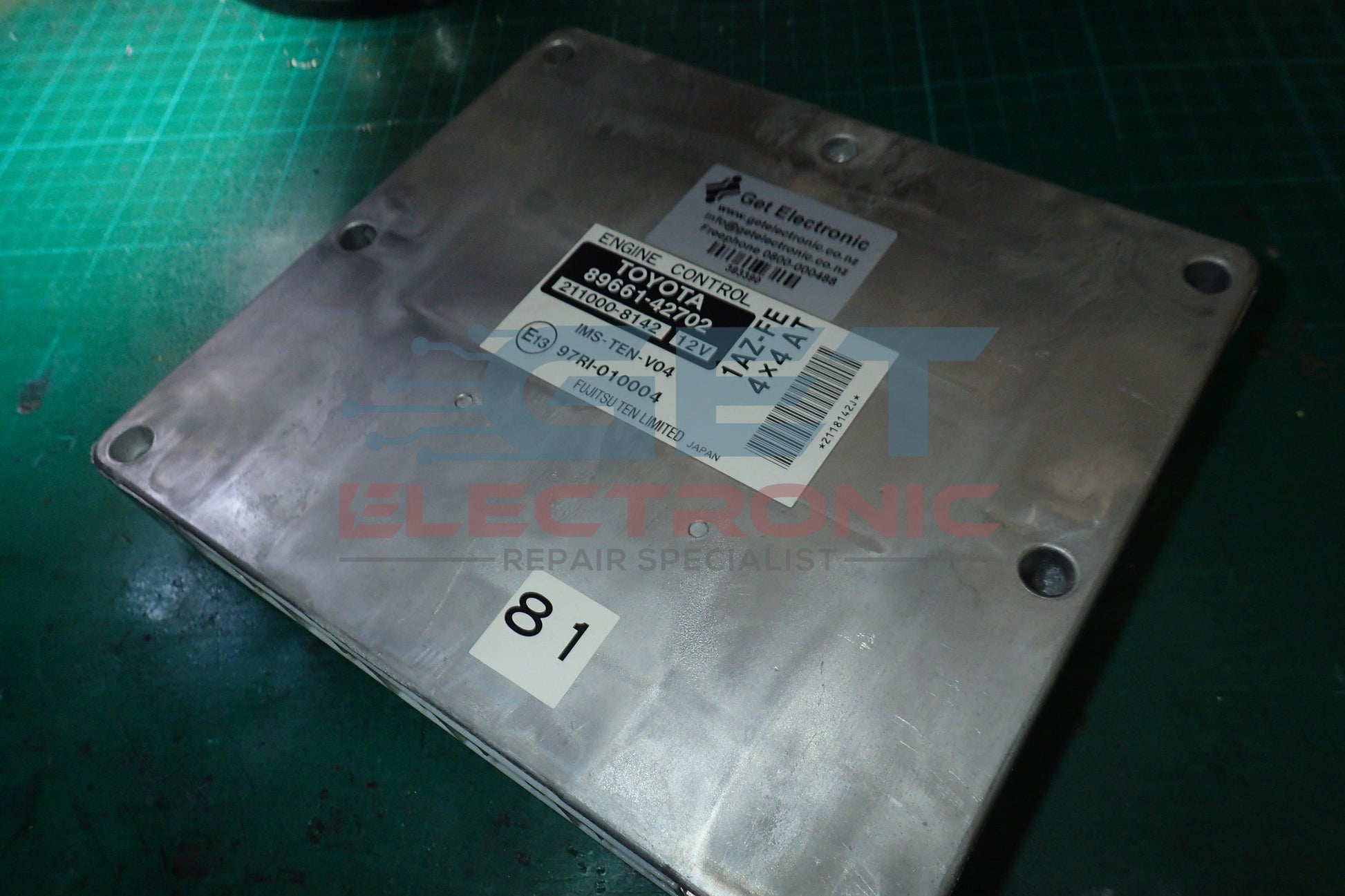

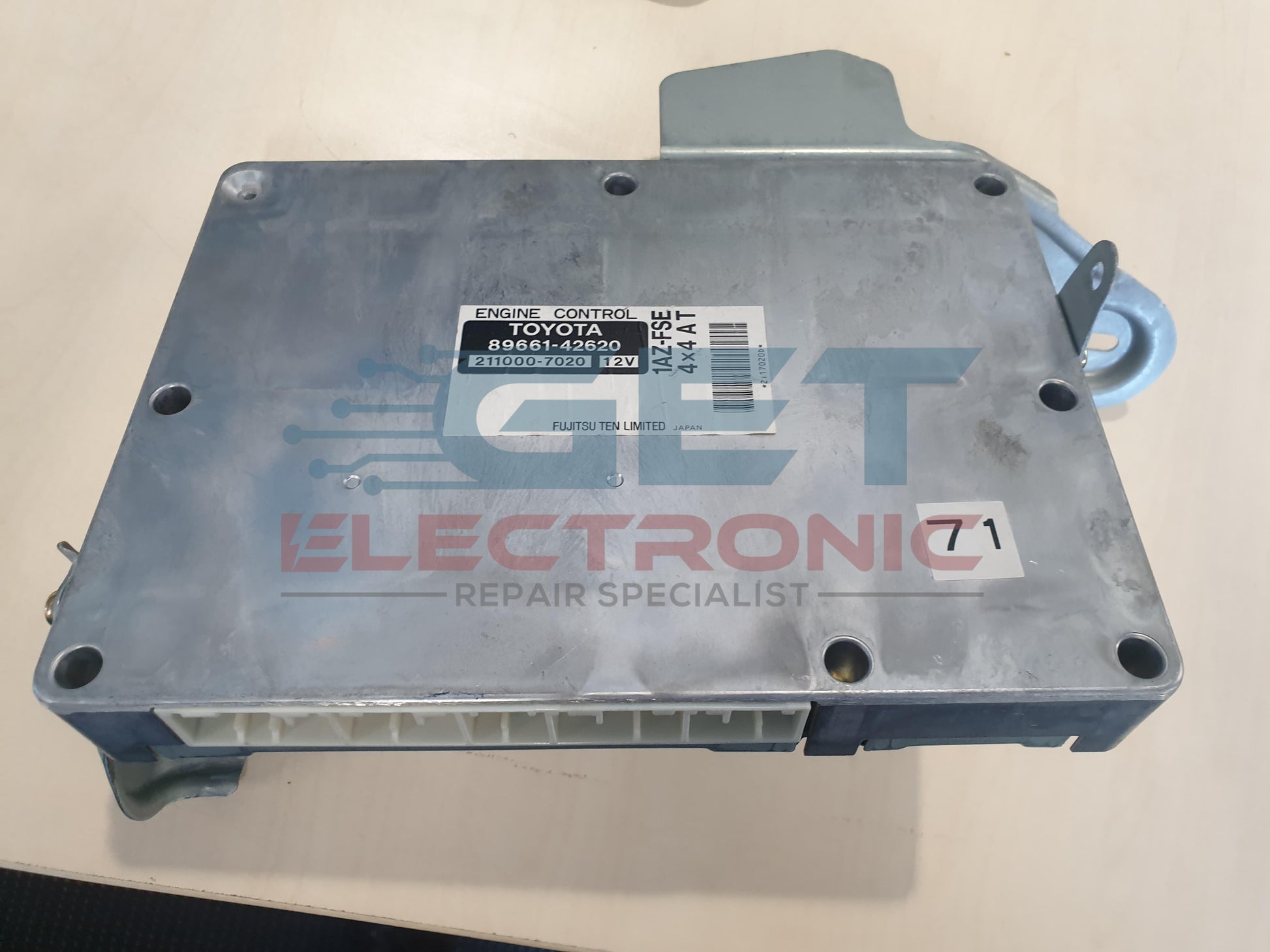

This is a repair service for the Engine Control Module (ECM) on 2001–2005 Toyota RAV4 models (both 2WD and 4WD) that are experiencing harsh or erratic transmission shifting.
These models use a combined ECU/TCM unit that is prone to failure, often mimicking a faulty transmission, when in fact the issue is with the control module.
✅ Common Symptoms:
-
Harsh or delayed shifting, especially into 3rd gear
-
Erratic or unpredictable gear changes
-
Slamming into reverse
-
Feels like the car is braking by itself
-
Clicking or rattling noises from the front of the vehicle
-
Inconsistent behaviour—fine one day, failing the next
-
Issues present only when hot or cold
-
Sluggish takeoff from a stop
-
Often no check engine light or codes, but when present:
-
P0750 / P0753 / P0755 / P0758 / P1760
-
🔧 Our Repair Service Includes:
-
Full diagnostic testing of the ECM/TCM
-
Replacement of known failing components
-
Repair of internal track damage caused by heat stress
-
Bench testing after repair to verify correct operation
In 99% of cases, these transmission-related issues are resolved without replacing or rebuilding the transmission—by simply repairing the ECM correctly.
