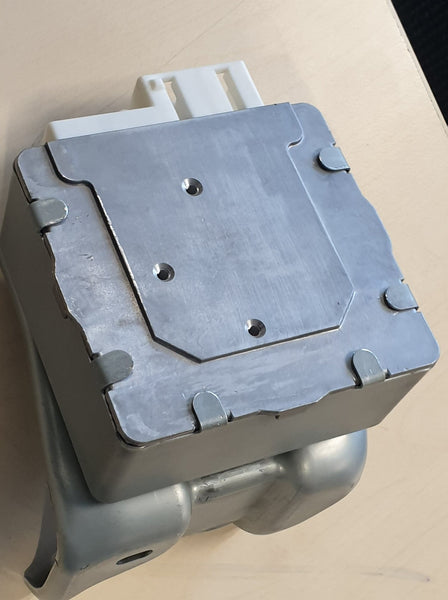

TOYOTA Passo, Daihatsu Sirion - EPS (Electric Power Steering) repair
Price Exclusive of GST
Our minimum assessment fee is $150 + GST (Excluding Headlights). This just covers the time to check the unit over. If you proceed with the repair, we’ll apply this to the total cost. Our full terms of trade can be found here. Has repair work been attempted by your customer? Link here !
Heavy Diesel or Industrial Repair you need? Link here for a solution!
Australian customers, we can pick up from your Workshop. Click Here to arrange a pickup
International Customers:
When sending a unit from overseas, please declare it as “Repair and Return” with a low customs value (around $100 USD) to avoid unnecessary import fees. - All Repair Prices are quoted in NZD
Common faults include relay failure, and EPS motor performance. With symptoms typically being the EPS light on the instrument cluster, the steering in the vehicle becoming hard, and EPS related fault codes when scanned.
common part number but not limited to

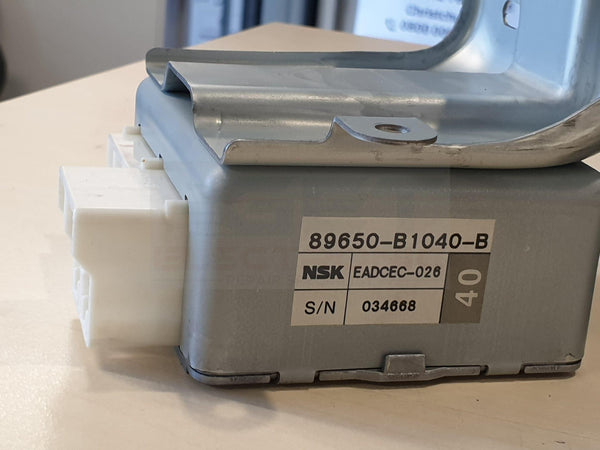

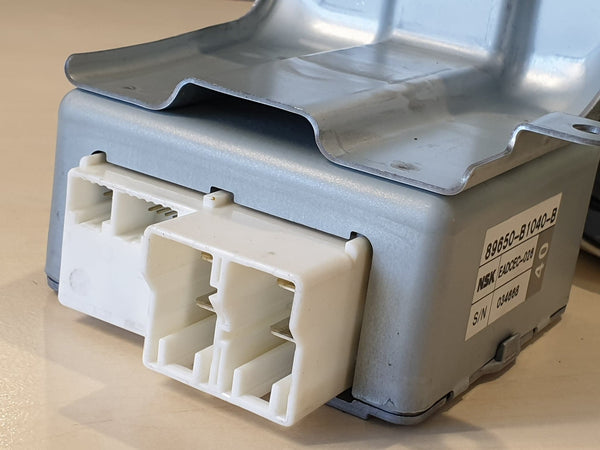

- 89650-B1040
- 45250-B1013-2
- 89Y23416 PD-0021
- 89650-B1010-B
- EADCEC-023
- 89650-B1130-A
- 45250-B1014
- Eadceg-037
- 85126233
- 45250-B1011
Note : this unit must be sent in as a pair, with the EPS and motor. This is so that we can perform calibrations and checks, making sure that the EPS is recognizing the motors performance characteristics after rebuild. The motor is easy to remove from the steering column, with just two 10mm bolts allowing you to remove the motor. The motors output shaft is splined into the column, and should slide out of the steering column.
